    OTD-16 Electric Power Fitting Copper Aluminium Cable Lug

    Ask Lasest Price
    Brand Name : HC , OEM
    Model Number : OTD-16
    Certification : CE , SGS , ISO2001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 5000 Sets Per day
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    OTD-16 Electric Power Fitting Copper Aluminium Cable Lug

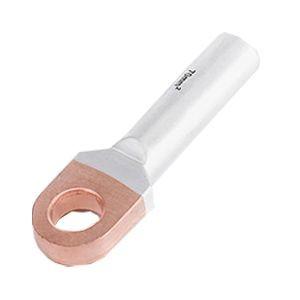

    Copper-Aluminium Cable lug OTD-16


    1. product features
    Copper-aluminum friction welding process with high weld strength and resistance to electrochemical corrosion;
    The electrical contact surface is flat, the conductive performance is superior, and the advantages are low resistance and small temperature rise;

    2. structural characteristics
    Executive standard
    Meet the technical requirements of GB/T 14315.

    Raw material
    Made of pure copper and aluminum bars, the material is dense;

    Connection method
    The product is connected to the cable using a crimping process for reliable connection.

    use range and application field
    It is suitable for connecting 35kV (Um=40.5kV) and below power cable conductors to the end of the electric device. Other wires and cables for fixed laying can also be used.

    ITEM NO.DIMENSION(MM)PCS/CARTON
    D±0.5d±0.3
    OTD-1695300
    OTD-25107300
    OTD-35129240
    OTD-501410200
    OTD-701612200
    OTD-951813200
    OTD-1202115160
    OTD-1502316160
    OTD-1852518120
    OTD-2402820120
    OTD-3003122120
    OTD-4003525120
