    800M Span OPGW Tension Set Fiber Cable Fittings

    Ask Lasest Price
    Brand Name : HC , OEM
    Model Number : ONS Series
    Certification : CE , SGS , ISO2018
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 5000 Sets Per day
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    800M Span OPGW Tension Set Fiber Cable Fittings

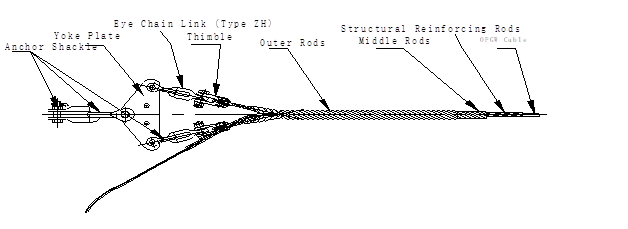

    Double tension set for OPGW Fiber Cable

    Material:Aluminum-clad steel rod.

    Trait:

    1. Double Tension Set improved the mechanical strength of the clamp effectively with the designation of three-ply preformed rod.
    2. It is mainly used in the special design of the fiber with large mechanical strength, which have high fall and long span route. And also not limited to the tower and pole with turning angels.


    7.2Specification

    ModelLength of Structural Reinforcing Rods (mm)Length of Middle Rods(mm)Length of Outer Rods (mm)

    Weight

    (kg)

    Failing Load(KN)Universal Scheme
    Yoke PlateThimbleAnchor Shackle
    ONS-160-* *24001800160014.8160Reference Appendix1TC 10Reference Appendix1
    ONS-210-* *28002200200020.6210TC 12
    ONS-250-* *31002400220027.0250TC 16
    ONS-320-* *32002600240033.5320TC 16

    Note:

    1.All the above scheme are Universal Scheme, if use other link fittings, please illuminate in particular.

    2.The above items not include all of our products, if you have any requirement, please consult with our technical Department.

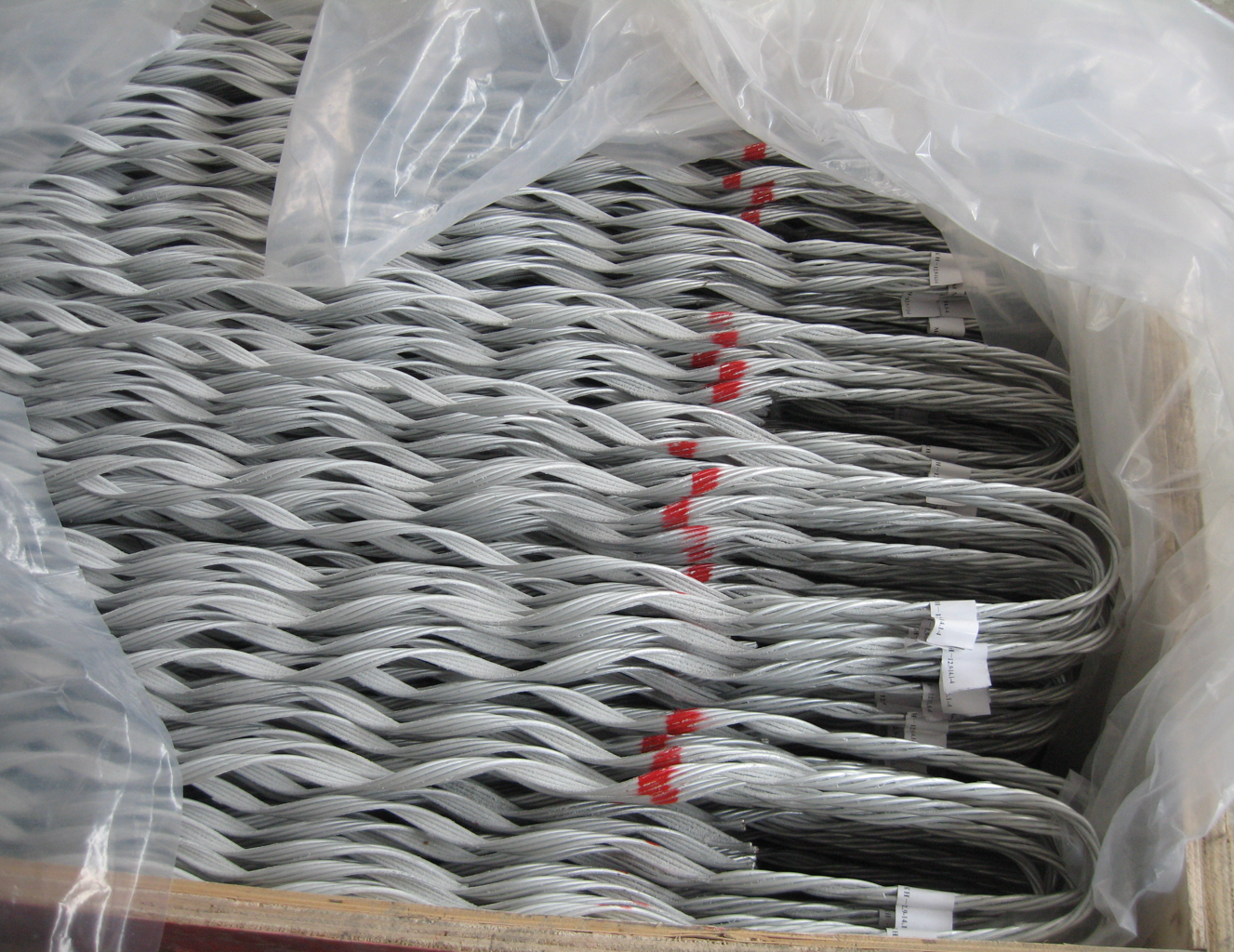

    Packing: Wooden case , Carton , Etc
